SED1300 Details

Thanks to michael.gaus@ngi.de , here is a scanned sheet for the modules: ea-x_series.pdf. ( 556k bytes).

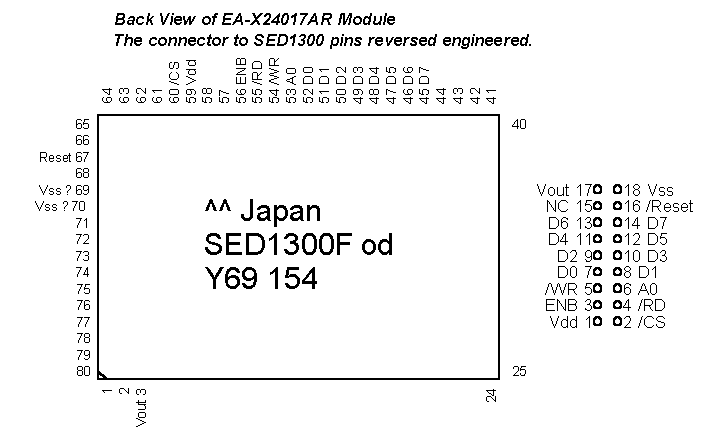

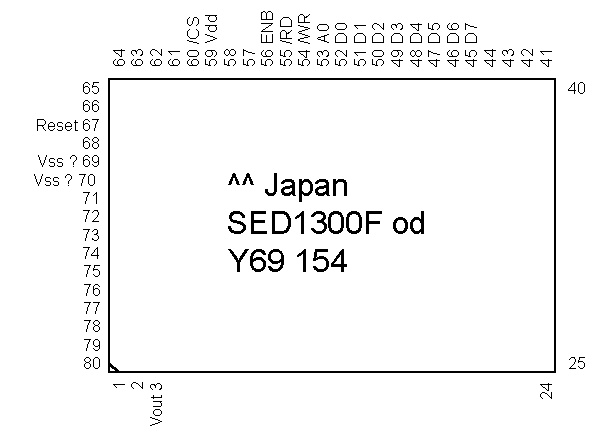

The EA-X series uses the SED1300 chip, and this data sheet contains the instruction set, pinout of module, timings, waveforms, and bitmaps . SED1300 chip pinout and EA-X24017AR module and SED1300 pinout ( When looking at the back of the module or the top of the chip.)
