PIC 16C84 code for the Epson SED1200 chip in the EA-C20017AR modules

Here is the PIC 16C84 code lcd.inc for driving the SED1200 LCD display as used in the Epson EA-C20017AR modules. The SED1200 data sheet is available from the Epson Web Site the Epson Web Site . , or this is what I downloaded sed1200f.pdf or m1200.pdf

Thanks to michael.gaus@ngi.de , here is a scanned sheet for the modules: ea-x_series.pdf. ( 556k bytes). It does however have some interesting information about the EA-C series modules as well.

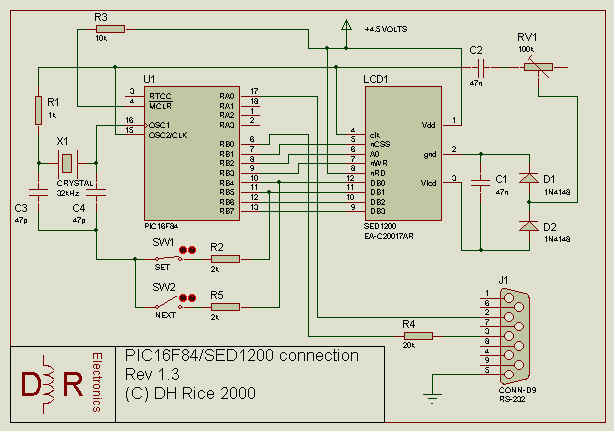

;The Epson EA-C20017AR display uses a SED1200F controller.
;The connections are:
;Pin Connections        when looking at display, contacts on left.
;
;       1       +5V     2       Gnd        |------------------|
;       3       Vlcd    4       Clk        |                  |
;       5       -CS     6       A0         |    DISPLAY 20x1  |
;       7       -WR     8       -RD        |      -           |
;       9       DB3     10      DB2        |                  |
;       11      DB1     12      DB0        |------------------
;
; Display is 20 x 1

I brought some of these displays from Greenweld Electronics. They were cheap, but have a good character set, and only require 7 data lines.

Doug Rice, doug.h.rice@btinternet.com

Updated 11th March 2000
