This page reports that when I disconnected the Bell wire at my master socket faceplate, My ADSL connection downloads went from a disappointing 136 kbs to a very acceptable 5250 kbs Downstream and ~4000kbps download.
Here is the main page.

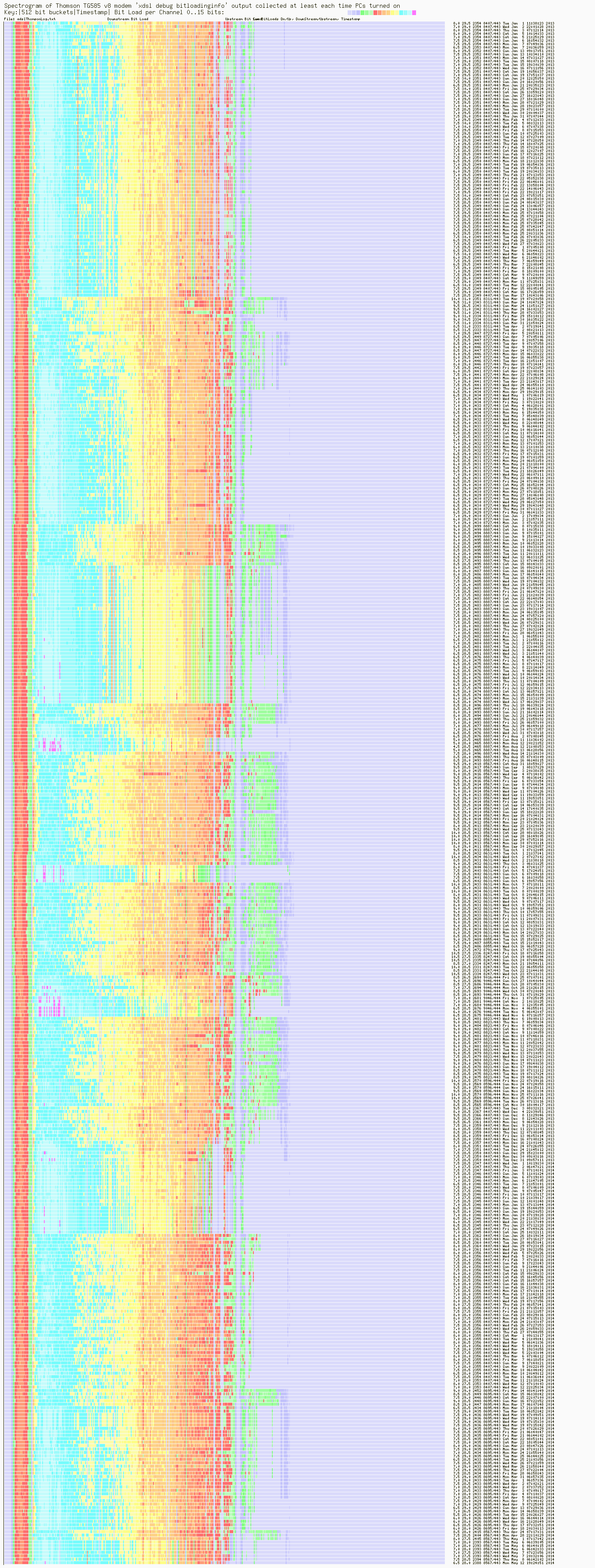

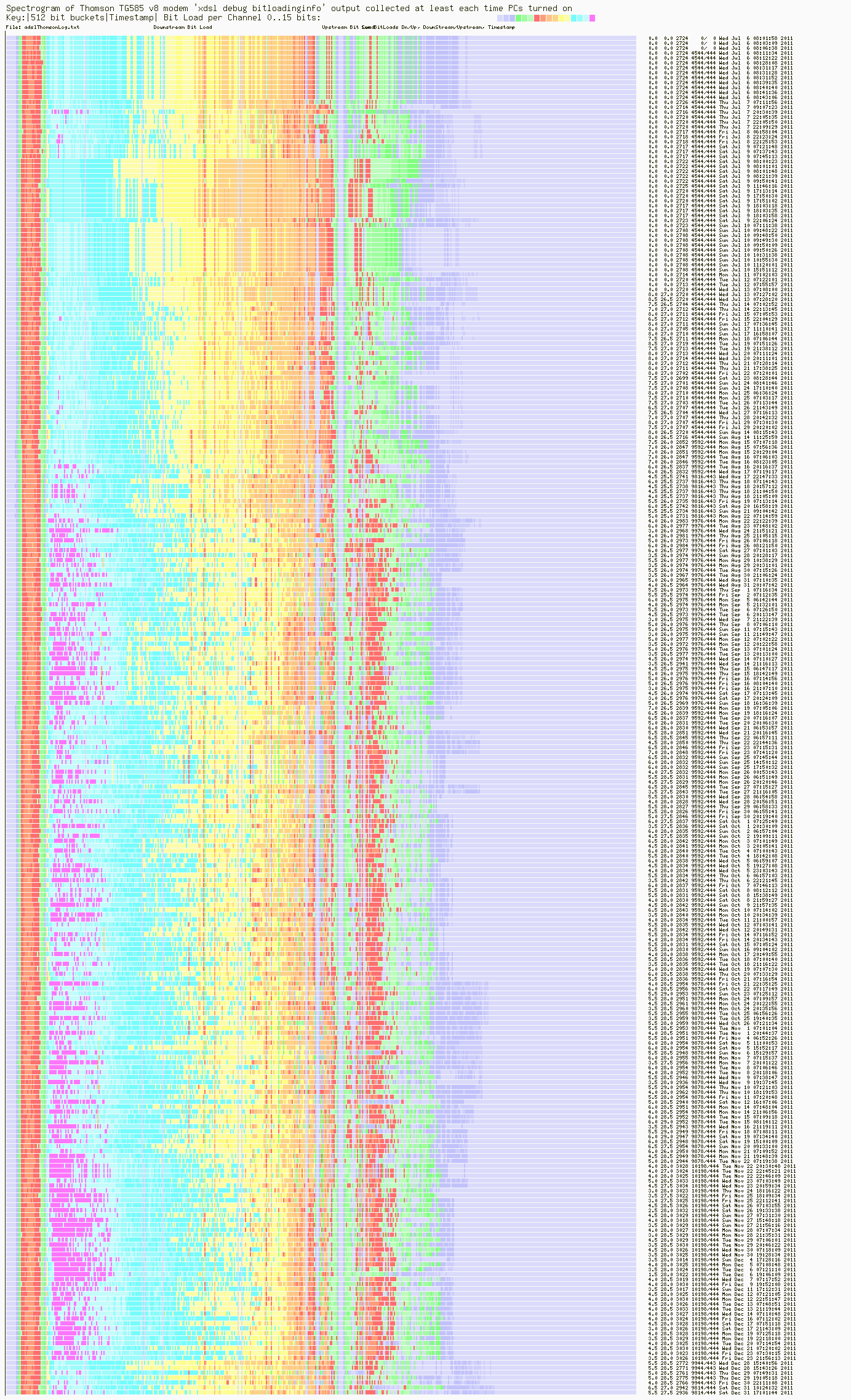

Below is a spectrogram of the results of "xdsl info" and "xdsl debug bitloadinginfo" captured by Perl script output from Thomson TG585 v8 ADSL router. I have a Perl script to poll the ADSL modem each time I turned on my PC and when I wanted. I telnet onto the modem and run the commands and log the output. I use a LUA script to generate the graphic files below.

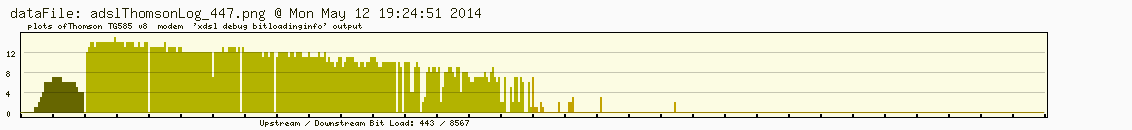

Latest Measurement: script.

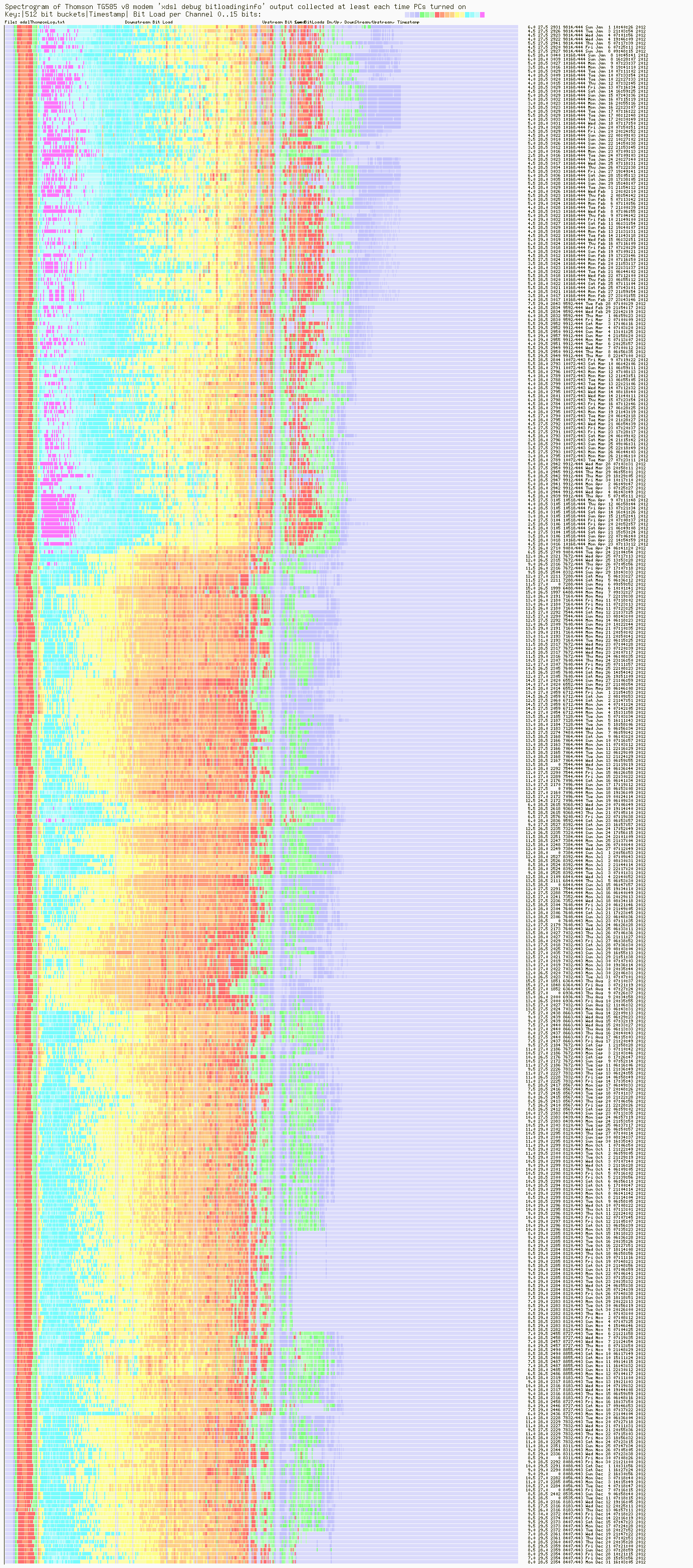

Latest Spectrogram: script.
On about 19th June 2011 I upgraded my ADSL modem to eTEC Model Name: 8411G . The Upstream / downstream speeds of were 444/ 9866 kbps
System -------------------------------------------------------------------------------- Model Name: 8411G System UpTime: 12 min Software Version: 8411G_ETC_050407.02FA UI Version: 1.001 Firmware Version: 1.3.8 DSP Version: 2.7.1.8 DSL -------------------------------------------------------------------------------- DSL Status: SHOWTIME.L0 ADSL2+ Upstream Speed: 444 kbps (Fast) Downstream Speed: 9866 kbps (Fast) LAN --------------------------------------------------------------------------------
On about 5th July 2011 I have upgraded my ADSL modem to Plusnet's Standard Issue. The Upstream / downstream speeds of were pretty good but have stuck at 444 / 4544 kbps
NOTE: 01/07/2011 I have signed up to "a Broadband trial for TV services", and upgraded to the Plusnets standard issue modem Thomson TG585 v8 Plusnet 8.2.7.8.DA. On 5th July 2011 I have upgraded my ADSL modem to Plusnet's Standard Issue and found how to extract the data for these plots. The Upstream / downstream speeds of were pretty good but have stuck at 444 / 4544 kbps. Hopefully this is due to the many outages due to replacing the ADSL modems.
If you have found this useful or want to make a comment please add to my blog: ADSL BLOG
Typical Output:
"xdsl info"; "xdsl debug bitloadinginfo"; ============================================ starting:Tue Jul 5 08:24:13 UTC+0100 2011 ============================================ ================================================= ====== ? ------------------------------------------------------------------------ ______ Thomson TG585 v8 ___/_____/\ / /\\ Plusnet 8.2.7.8.DA _____/__ / \\ _/ /\_____/___ \ Copyright (c) 1999-2010, THOMSON // / \ /\ \ _______//_______/ \ / _\/______ / / \ \ / / / /\ __/ / \ \ / / / / _\__ / / / \_______\/ / / / / /\ /_/______/___________________/ /________/ /___/ \ \ \ \ ___________ \ \ \ \ \ / \_\ \ / /\ \ \ \ \___\/ \ \/ / \ \ \ \ / \_____/ / \ \ \________\/ /__________/ \ \ / \ _____ \ /_____\/ \ / /\ \ /___\/ /____/ \ \ / \ \ /___\/ \____\/ ------------------------------------------------------------------------ {doug} ====== Modem state: up Up time (Days hh:mm:ss): 0 days, 23:13:05 xDSL Type: ADSL2+ Bandwidth (Down/Up - kbit/s): 4544/444 {doug} ====== Tone : # Bits per tone 0 : 0 0 0 0 0 0 0 0 2 2 10 : 4 4 6 6 6 7 7 7 7 7 20 : 6 6 7 6 6 6 6 6 5 4 30 : 4 2 0 11 13 13 13 13 13 14 40 : 13 14 14 14 14 14 13 14 14 14 50 : 14 14 13 13 13 14 14 14 13 13 60 : 14 14 13 14 0 13 13 12 13 13 70 : 13 12 12 12 12 12 13 12 13 13 80 : 13 12 12 13 12 13 12 12 12 13 90 : 13 13 12 13 12 13 12 12 12 12 100 : 11 11 11 11 11 12 11 11 11 11 110 : 0 12 12 11 11 11 11 11 11 11 120 : 11 11 11 11 11 11 11 0 11 11 130 : 11 11 11 11 12 11 11 11 11 11 140 : 11 11 10 10 10 10 10 11 10 10 150 : 10 10 11 10 10 10 9 9 10 9 160 : 8 5 9 10 11 10 10 10 10 8 170 : 10 10 9 9 9 10 9 9 9 8 180 : 8 10 9 10 9 9 10 9 0 9 190 : 9 0 9 9 9 9 9 9 9 9 200 : 9 9 9 9 9 9 9 9 9 9 210 : 9 6 8 9 9 6 9 9 9 9 220 : 9 9 9 8 9 9 10 9 9 9 230 : 8 9 9 9 7 9 7 8 6 8 240 : 8 9 8 0 6 7 8 7 7 7 250 : 7 6 0 0 6 7 7 7 7 7 260 : 6 6 6 6 5 5 4 4 3 1 270 : 0 0 0 0 2 2 4 4 5 5 280 : 5 5 0 6 6 5 4 6 5 6 290 : 3 0 3 4 4 6 4 3 3 3 300 : 2 5 3 5 2 4 4 2 6 5 310 : 3 2 5 4 3 3 2 2 2 2 320 : 2 4 2 0 3 4 2 2 2 3 330 : 2 2 2 2 0 2 2 2 2 2 340 : 0 2 2 2 2 2 2 2 0 2 350 : 2 2 2 2 2 2 2 2 2 1 360 : 2 0 2 2 2 1 1 1 0 0 370 : 0 0 0 1 0 1 1 0 0 0 380 : 0 0 0 0 0 0 0 0 0 0 390 : 0 0 0 0 0 0 0 0 0 0 400 : 0 0 0 0 0 0 0 0 0 0 410 : 0 0 0 0 0 0 0 0 0 0 420 : 0 0 0 0 0 0 0 0 0 0 430 : 0 0 0 0 0 0 0 0 0 0 440 : 0 0 0 0 0 0 0 0 0 0 450 : 0 0 0 0 0 0 0 0 0 0 460 : 0 0 0 0 0 0 0 0 0 0 470 : 0 0 0 0 0 0 0 0 0 0 480 : 0 0 0 0 0 0 0 0 0 0 490 : 0 0 0 0 0 0 0 0 0 0 500 : 0 0 0 0 0 0 0 0 0 0 510 : 0 0 {doug}
